Mitutoyo Tubular Inside Micrometer Carbide Tipped(137-207)

Mitutoyo Tubular Inside Micrometer Carbide Tipped(137-207)

SKU : 137-207
(0 Customer review)
₹12,924.54 including GST @18% 10,953.00

50-300mm

Range : 50-300mm Digital/Analog : Analog Inch-Metric : Metric Least count : 0.01mm
Categories: Tubular Inside Micrometers Brand: Mitutoyo
Add to Cart Add to Cart

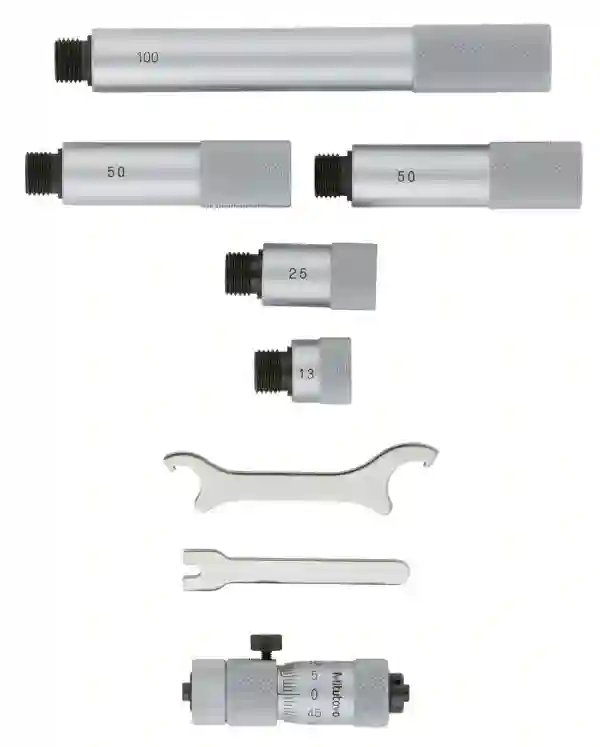

This is an extension rod type inside micrometer that offers you the following benefits:

  • Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
  • Carbide measuring faces are available.
Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
50 - 300 mm
Measuring span:
13 mm
Graduation:
0.01 mm
Spindle feed error:
3 µm
Limit of error:
±(3+number of rods+max. measurement length/50) µm
Scale:
Thimble and sleeve satin chrome finish, ø15 mm
Measuring spindle:
Spindle pitch 0,5 mm
Measuring face:
Carbide
Measuring method:
2-point
Extension rods:
5 (13, 25, 50 (2 pcs.), 100 mm)
Delivered:
Including box, key, micrometer head
Mass:
305 g
