Mitutoyo Tubular Inside Micrometer, Hardened Face(137-205)

Mitutoyo Tubular Inside Micrometer, Hardened Face(137-205)

SKU : 137-205
(0 Customer review)
₹21,949.18 including GST @18% 18,601.00

50-1500mm

Range : 50-1500mm Digital/Analog : Analog Inch-Metric : Metric Least count : 0.01mm
Categories: Tubular Inside Micrometers Brand: Mitutoyo
Add to Cart Add to Cart

This is an extension rod type inside micrometer that offers you the following benefits:

  • Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
  • Carbide measuring faces are available.
Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
50 - 1,500 mm
Measuring span:
13 mm
Graduation:
0.01 mm
Spindle feed error:
3 µm
Limit of error:
±(3+number of rods+max. measurement length/50) µm
Scale:
Thimble and sleeve satin chrome finish, ø15 mm
Measuring spindle:
Spindle pitch 0,5 mm
Measuring face:
Hardened steel
Measuring method:
2-point

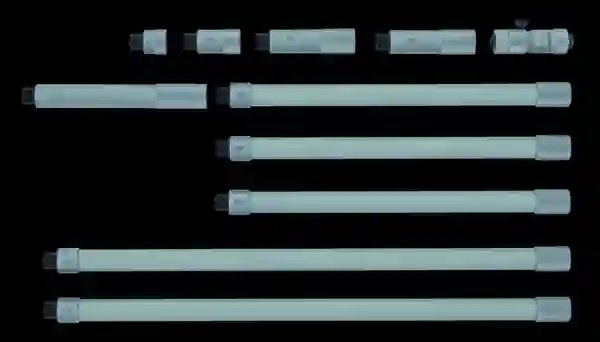

Extension rods:
10, 13, 25, 50 (2 pcs.), 100, 200 (3 pcs.), 300 mm (2 pcs.)
Delivered:
Including box, key, micrometer head
Mass:
1225 g
